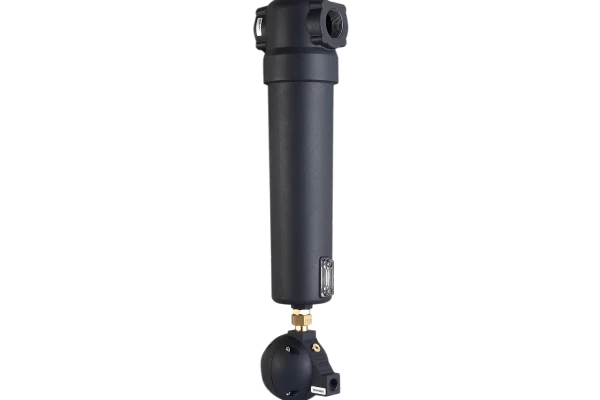

CAT M1 series filters are designed to reduce maximum particle size to 0.01µm and oil concentration to 0.003mg/m3 in compressed air, delivering as per ISO 8573.1 Class 1.
These filters employ state-of-the-art Borosilicate glass fibre as filter media in addition to Activated carbon. The filter housing is made of aluminium alloy and has a maximum operating pressure of 16 bar g.
SANPAR CAT-M1 Series filters are capable of filtering unwanted dust, oil, oil vapor and odour from the medical air. These contaminants can damage critical equipments like ventilators.
Salient Features
- Filters unwanted dust, oil, oil vapour and odour in the medical air for breathing purpose.
- Applied to critical applications such as ventilators and medical equipments.
- Installed for the generation and purification of oxygen and nitrogen gas.
- Multi-layered filtration by the use of Borosilicate Glass Fibre filtration media and activated carbon.
- Conforming to ISO 8573.1 Class 1 standards
- Breathing quality air as per EN12021-2014.
- Dust filtration up to 0.01µm.
- Oil concentration up to 0.003 mg/m3.
- Available from 5-500 Cfm.
