When condensate is not drained from a compressed air system it damages compressed air system components. drain valves remove condensate and thereby protect the components downstream to the compressed air treatment system.
A drain valve should be installed at each place in your compressed air system where condensate accumulates.

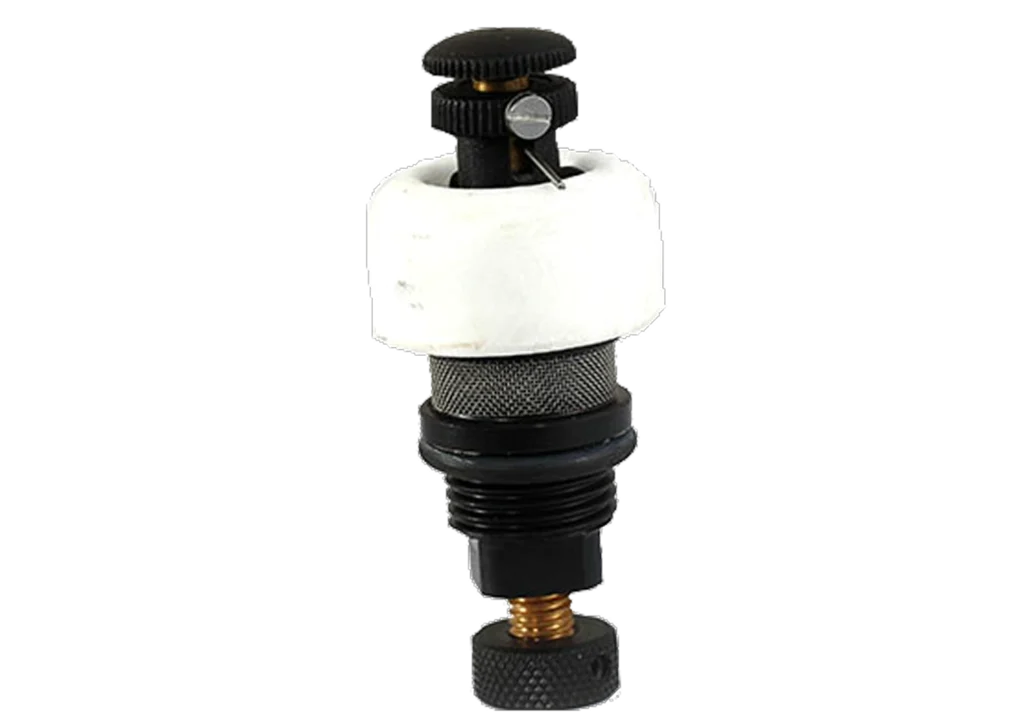

SANPAR make INTERNAL DRAIN is a no air loss drain. SANPAR make internal drain is float type drain with standard 1/2″ bsp connections. there is no-air loss drain.
An AUTOMATIC TIMER CONTROLLED DRAIN consists of a strainer with a solenoid valve (230v A/C). The drain valve opens based on the timings set in the drain. Also the time interval between the successive openings of the valve can be set. The drain has standard ½’’ BSP connections.

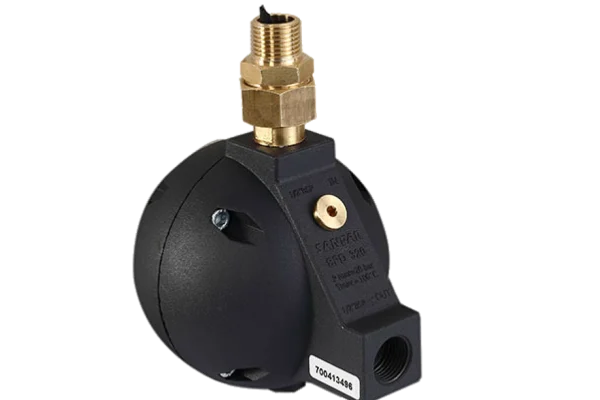

This MECHANICAL FLOAT DRAIN is highly-effective and requires no Electrical Supply for its operation. Also ensuring Zero precious Compressed Air Loss
SANPAR LEVEL CONTROL DRAIN
Zero Air Loss - ½” BSP/ ¾” BSP
The SANPAR Level Sensor Drain which ensures there is no loss of compressed air while the condensed moisture/water is drained off the Dryer/Filter/Air Receiver. The solenoid valve closes while the condensed water level reaches the bottom sensor and valve opens while the level reaches the top sensor. There is always a small amount of water that remain in housing, preventing the compressed air draining it along with water. Drain housing are equipped with all of the features required to make this the most efficient and cost effective draining solutions for compressed air system. The drain comes with an aluminium die cast housing that can withstand a maximum working pressure of 16 bar(g).
Technical Specification are for the following standard conditions
- Operating Pressure > 7 Bar g
- Air Inlet Temperature: 45°C
- Pressure Dew Point : -60°C
- Condenser Cooling Air Temperature : 40°C
