- 360° Rotatable

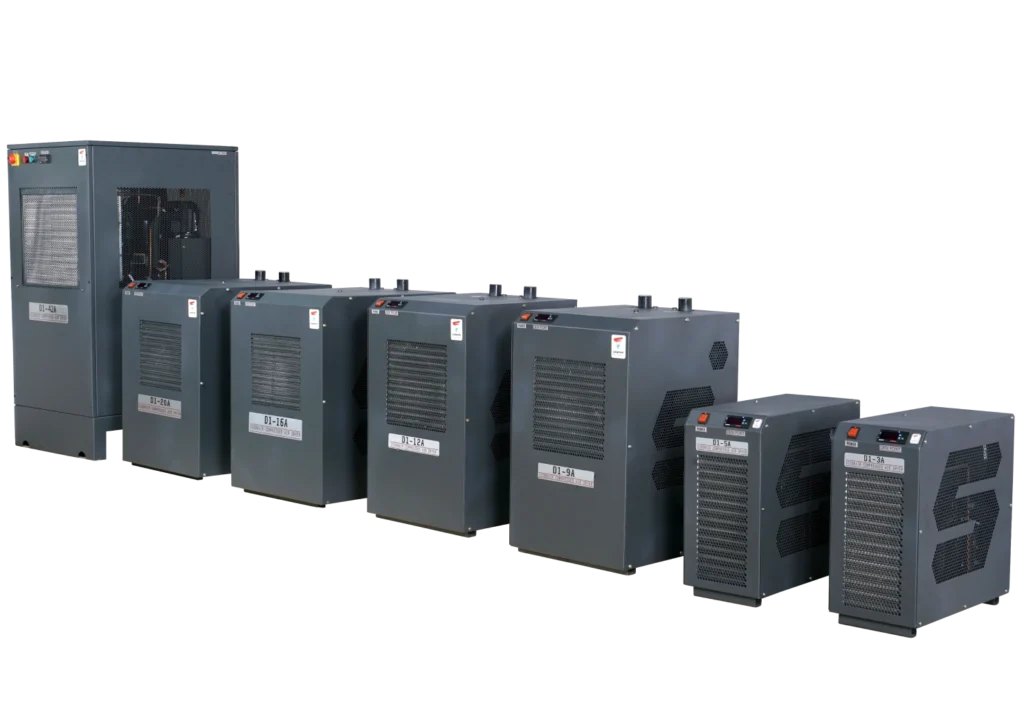

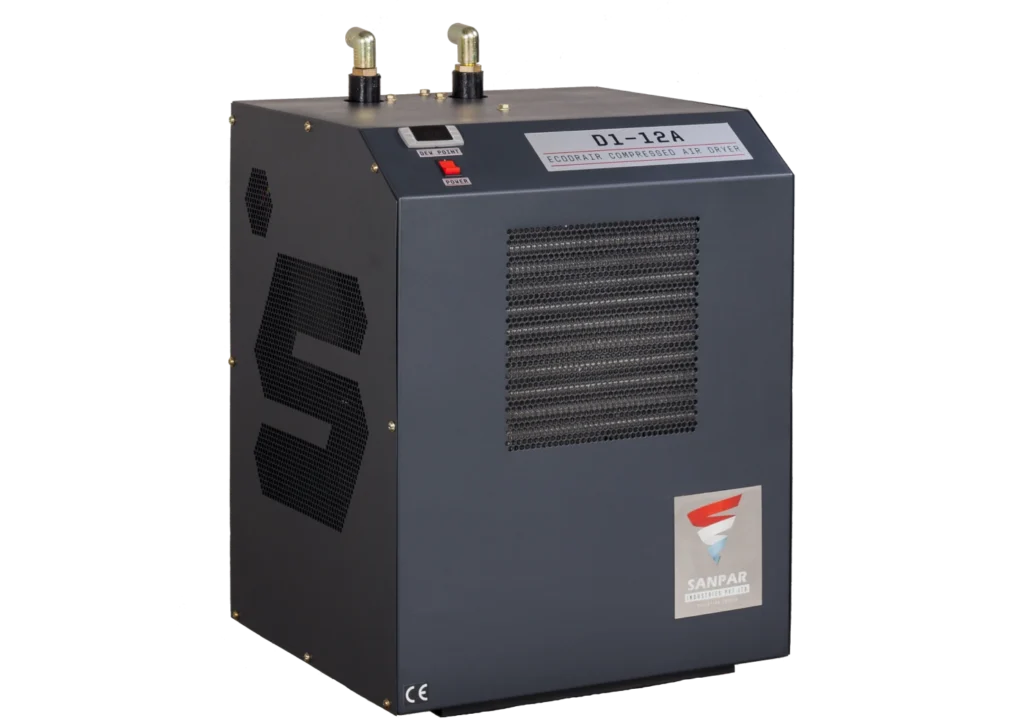

One of the classic product rangers from the house of SANPAR. Ecodrair series are those refrigerant compressed air dryers which employs tube-in tube design of air to air and evaporator in the dryer. The capacity ranges from 5 cfm to 180 cfm with operating pressures from 4 bar g to 16 bar g., wherein higher pressure ranges are also available up to 50 bar g.
- Equipped with air-cooled condensers, ensuring efficient performance even at ambient temperatures up to 50°C.
- Delivers compressed air with a consistent pressure dew point of (+)3°C.

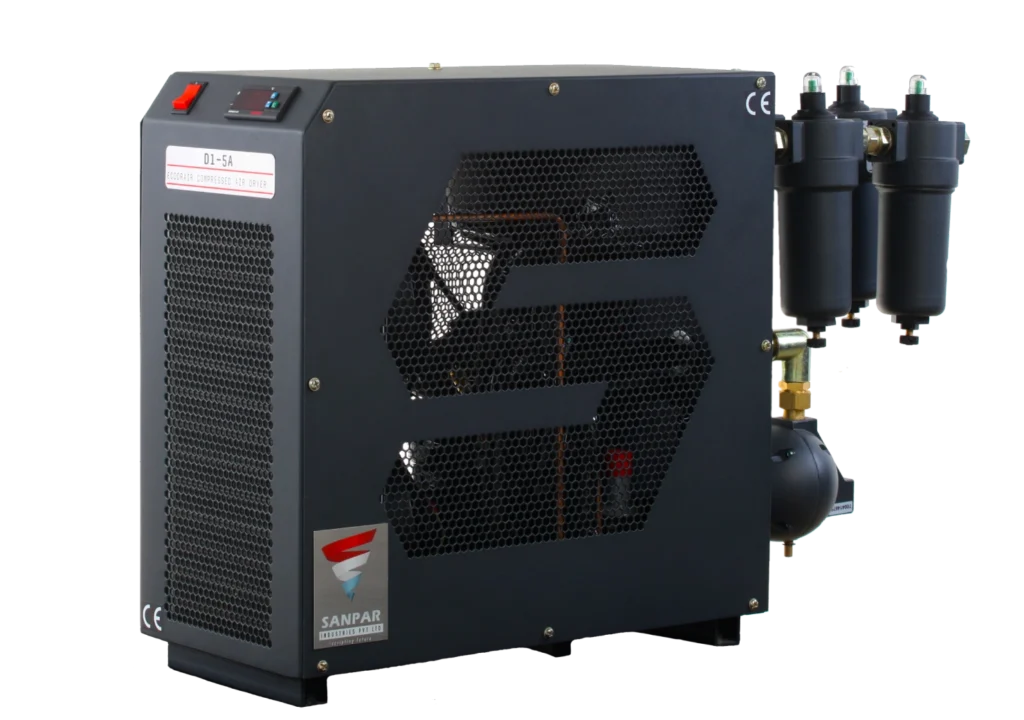

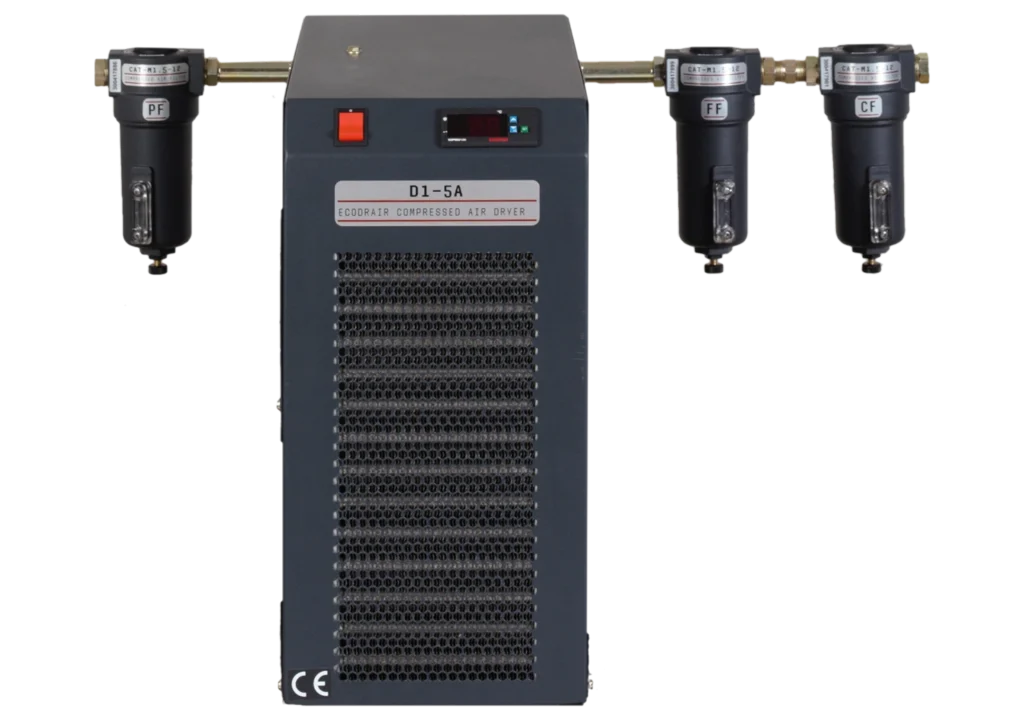

- Integrated pre-filter and after-filter meet ISO 8573.1 Class 1.4.1 standards:
- 1 → Dust particles <5 microns
- 4 → Pressure dew point (+)3°C
- 1 → Residual oil content <0.01 mg/m³
- Features a Hot Gas Bypass Valve for modulating air flow fluctuations.
- Uses a Capillary Tube to maintain stable evaporating temperature despite load and ambient variations.
The dryer is incorporated with hot gas bye pass valve which acts as modulating valve during the air flow fluctuations. The dryer is also incorporated with capillary tube to ensure consistent evaporating temperature irrespective of load fluctuations and ambient temperature variations.
The digital dew point indicator ensures high accuracy, while differential pressure indicators on filters help optimize filter element replacement. These compact dryers have a minimal footprint with rear inlet and outlet connections for easy installation. Designed for silent, reliable operation, they require minimal maintenance—only periodic condenser fin cleaning and zero-loss drain upkeep based on site dust conditions.
Salient Features
- Air Cooled
- Classic tube- in-tube type Heat Exchanger
- Hermetically Sealed Compressor
- Modulating capacity controller - 0-100% Thermal Load Handling
- Eco-Friendly refrigerated R134
- Fan Pressure Switch
- Capillary Tube Expansion Device
- Modular-In Design for optimum Serviceability
Technical Specification are for the following standard conditions
- Operating Pressure > 7 Bar g
- Pressure Dew Point : 3°C
- Air Inlet Temperature: 45°C
- Condenser Cooling Air Temperature : 40°C
