- 360° Rotatable

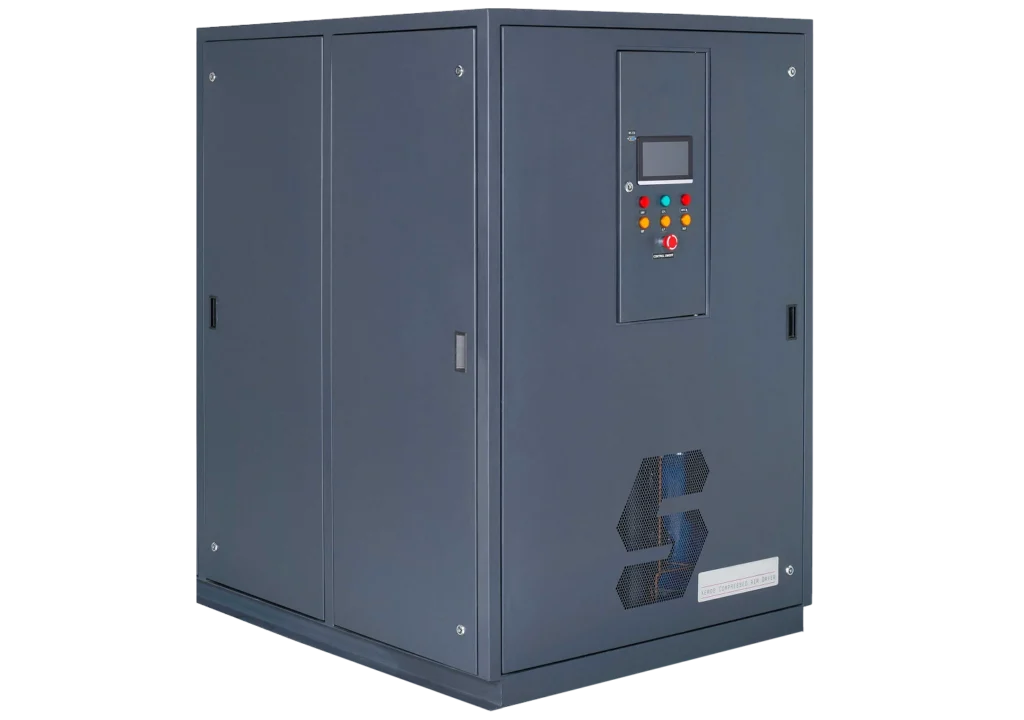

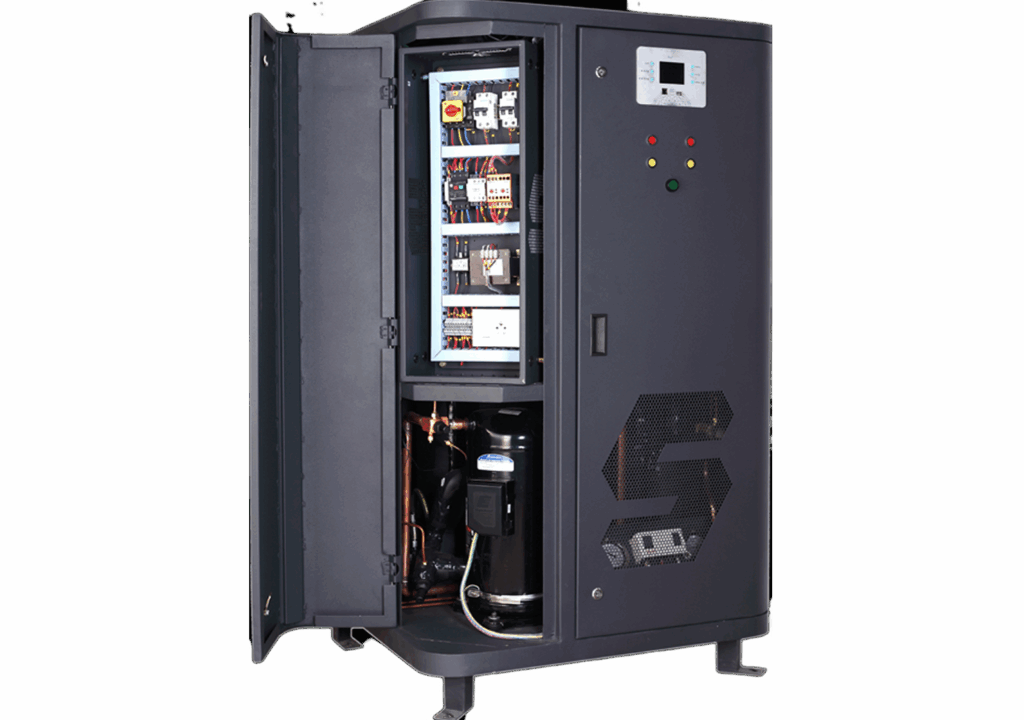

The moisture content in the compressed is removed by means of an Air Dryer. SANPAR make Refrigerated Air Dryer is a combination of an Open Loop Air cycle and a closed loop refrigerant cycle. The air here is cooled to very low temperatures so as to allow the moisture content in it to condense. The condensed water is removed from the air line thus rendering air free from moisture.
Xēros series is manufactured with air cooled condensers and water cooled condensers. Catering to a wide range of air flows – from 200 cfm to over 6000 cfm at a design pressure of 7 bar g. These dryers use eco-friendly refrigerants like R407C and R 134A and employ state- of – the – art microcontrollers.

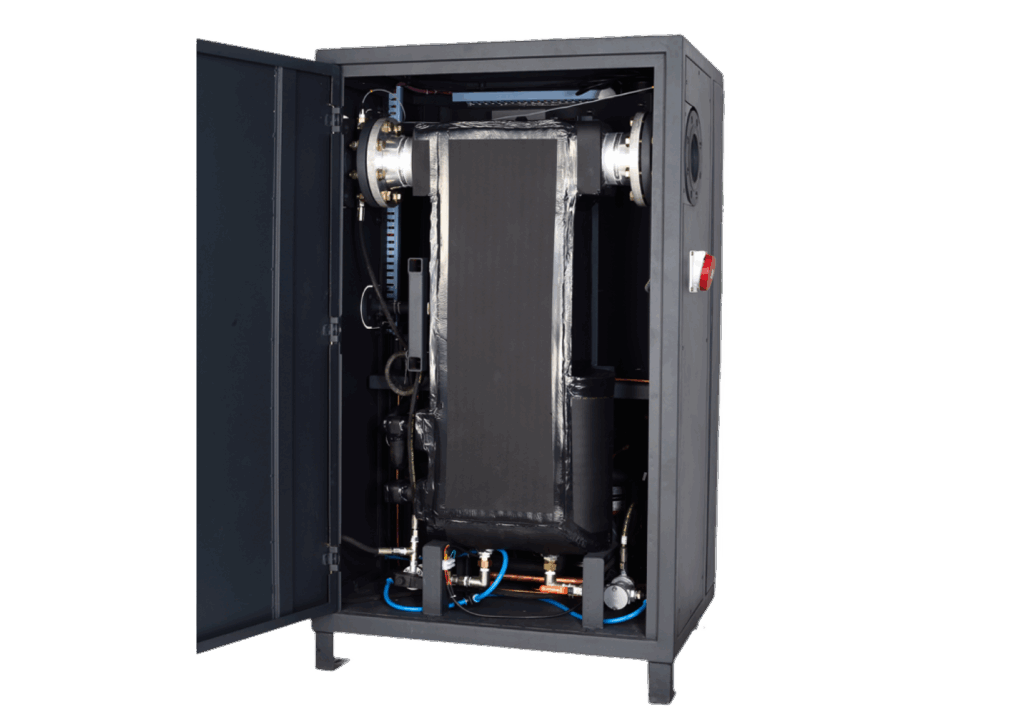

- Latest Technology of aluminum plate heat exchangers
- Capacity : 85 CFM to 10,000 CFM
- Operating Pressure : 3 to 16 bar g
- High Pressure Dryers : up to 50 bar g also available made to suit individual requirements
SANPAR manufactures water cooled refrigerant compressed air dryers (xeros) designed specifically for use in tropical countries where the ambient temperatures are considerably high, normally ranging up to 45-50°c.
Salient Features
- Wide Range of Models and Capacities
- Tailor made products to meet customer's requirements
- Stainless steel and energy efficient pumps
- Highly precise and calibrated temperature controller
- HP / LP switch, anti-freeze thermostat, float switch, oil pressure switch, OLP
- PLC / Microprocessor based controllers
- Highly efficient air/water cooled condensers
- State of art technology using most advanced heat exchanger tubes and baffle design makes the unit highly compact and heat transfer efficient
- Housings in galvanized steel and externally coated with epoxy resin
- Evaporator in Highly Efficient Plate type /shell and tube type
- Easy access to all movable parts easy to use and maintain
- Compact and innovative in design
- Buffer Tank and re-circulating pump in-between chiller and application can be eliminated
- Inbuilt Auto adaptive control system allows smooth trouble free operation during varying loads and varying ambient conditions
- Constant temperatures 365 days/24 hours a day regardless of ambient conditions
Technical Specification are for the following standard conditions
- Operating Pressure > 7 Bar g
- Pressure Dew Point: +3°C - ISO 8573.1 Class 1.4.1
- Air Inlet Temperature: 45°C
- Condenser Cooling Air / Water Temperature: 40°C / 32°C
